We are Manufacturer, Supplier Of NS - 150 Flow Sensor. Our Setup Situated in Pune, Maharashtra, India.
General Description

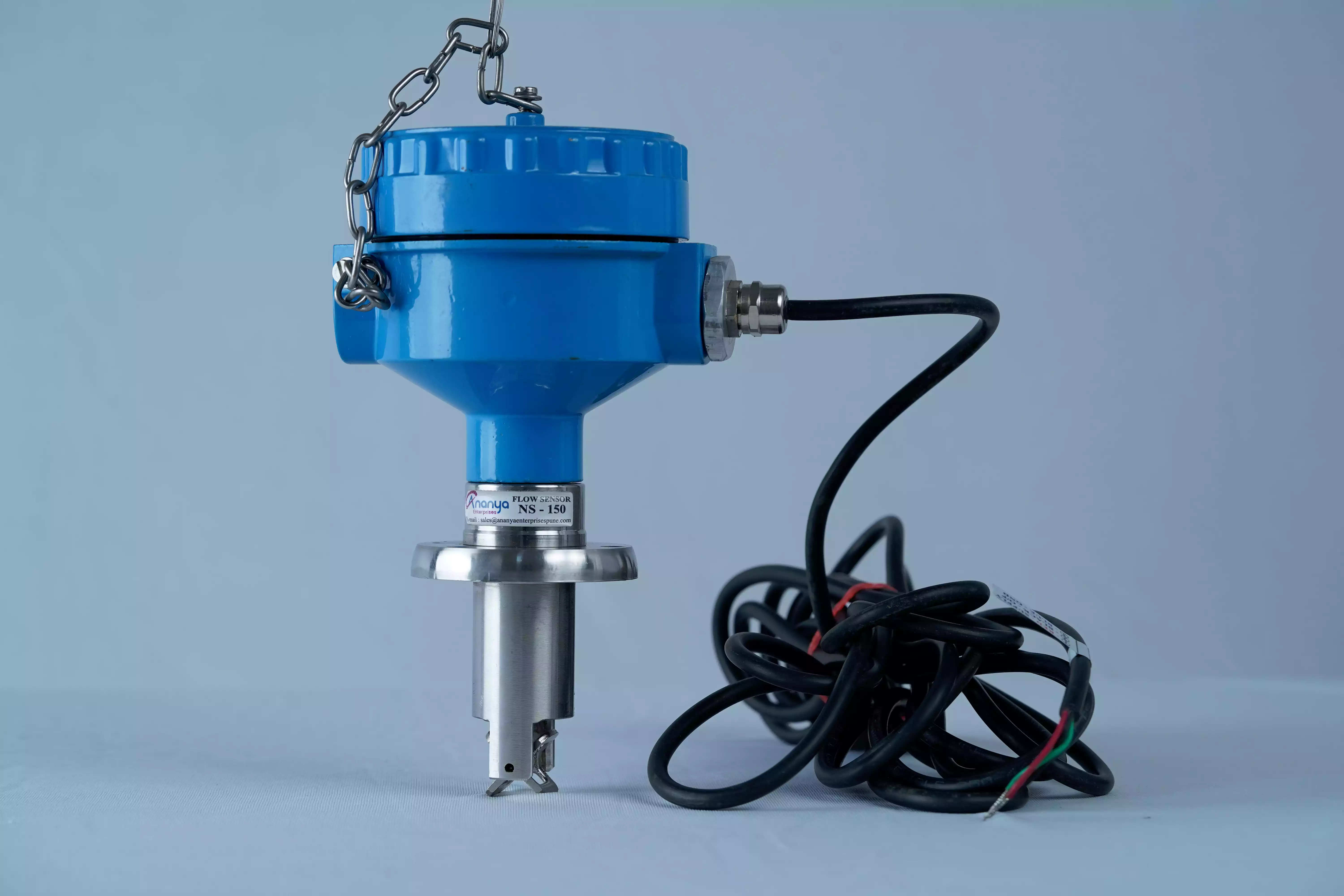

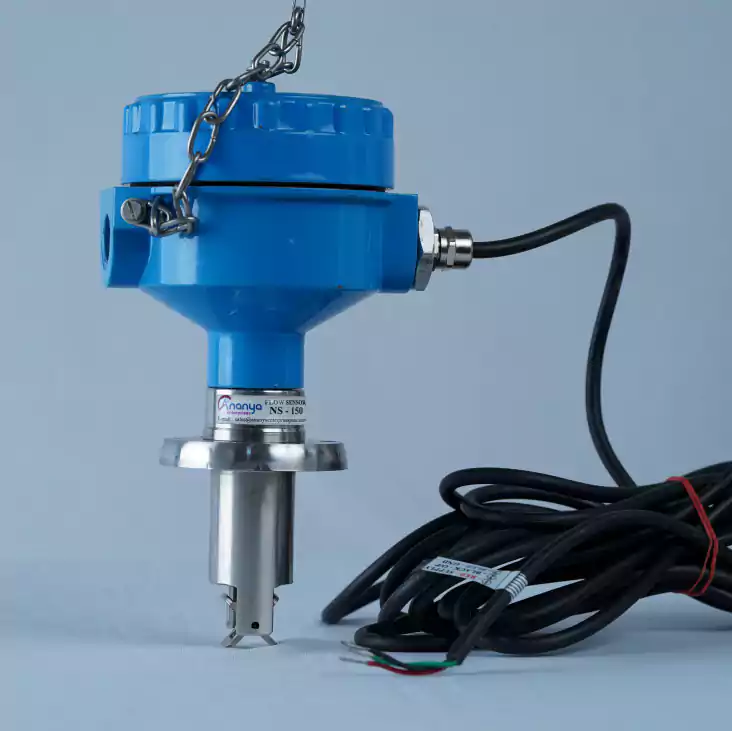

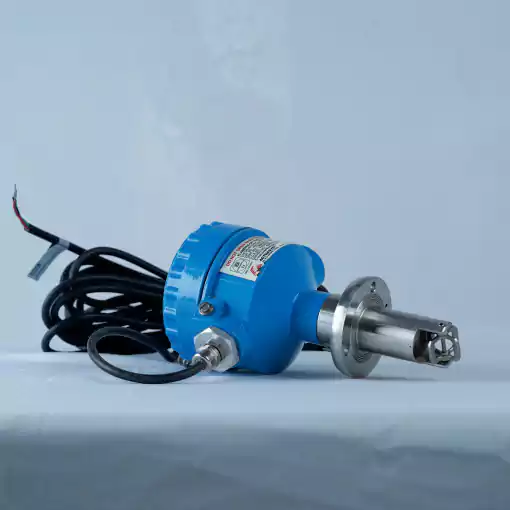

NS-150 is a Stainless steel flame proof enclosure paddle wheel type flow sensor suitable for high temperature liquid application. It is most durable & advance type flame proof enclosure paddle wheel Sensor. It is unique combination of Iron piece / corrosion resistant featured in paddle / pin. It is used in various chemical industries for high temperature and pressure application. Sensor can be installed in wide range of pipe sizes fitting like threated end / stubend with ms flange end / SS welded flange end / saddle & etc.
Silent Features
- Flame proof enclosure
- Heavy duty industrial application
- Suitable for high temperature application
- Most Accurate
- Easy to install & maintain
- Wide range of installation fittings
- Can be used directly to PLC or datalogger
- Individually calibrated with fitting for K factor (ml/pulse)
- High amplitude output signal from sensor eliminates needs of re-transmission upto 100 meter
- 4 blade impeller for best performance
- Linear, repeatable & constant output
- Practical no pressure drop
Application
- Agriculture
- Boiler Condensate Water
- Beverages & Food
- Chemicals & Pharmaceuticals
- Concrete Batching Plant / Construction
- Filtration Systems
- Power
- Textiles
- Water Treatment
- Oil
Line size flow range chart
| Pipe Size (NB) | 15 | 25 | 40 | 50 | 65 | 80 |
|---|---|---|---|---|---|---|
| Min Flow M³/Hr | 0.2 | 0.8 | 1.9 | 3.5 | 5.8 | 7.5 |
| Max Flow M³/Hr | 2.1 | 8.0 | 19 | 35 | 58 | 75 |
| Pipe Size (NB) | 100 | 125 | 150 | 200 | 250 | 300 |
| Min Flow M³/Hr | 14 | 22 | 31 | 56 | 87 | 126 |
| Max Flow M³/Hr | 140 | 220 | 310 | 560 | 870 | 1260 |
Range details
| Pressure | Up to 20 kg/cm² |
| Viscosity | Up to 20 CP |
| Temperature | 0 to 100°C |
| Velocity | 1 to 5 m/s |
| Accuracy | ± 2% of full scale |
Material Details
| Sensor pipe | SS 316 |
| Paddle | SS |
| Pin | WC |
| Gasket | PTFE |
| Bush | PEEK |
| IP | 65 |
Electrical Details
| Output Signal | PNP / NPN |
| Power Supply | 12-24 VDC |
| Cable Type | 3 Core PTFE / PVC coating |
| Cable length | 5 meters standard |
Inlet and outlet distances that must be maintained as per guidlines formula chart
Note:
- In Vertical piping only Upstream flow is recommended
- Flow meter + sensor + fitting should be installed before valve
- Use a filter or Y type strainer is must for best result.
