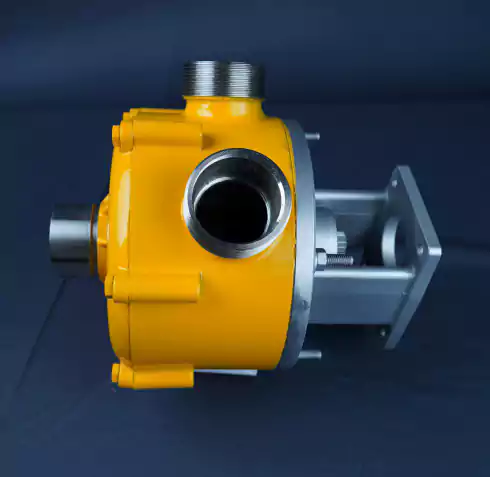

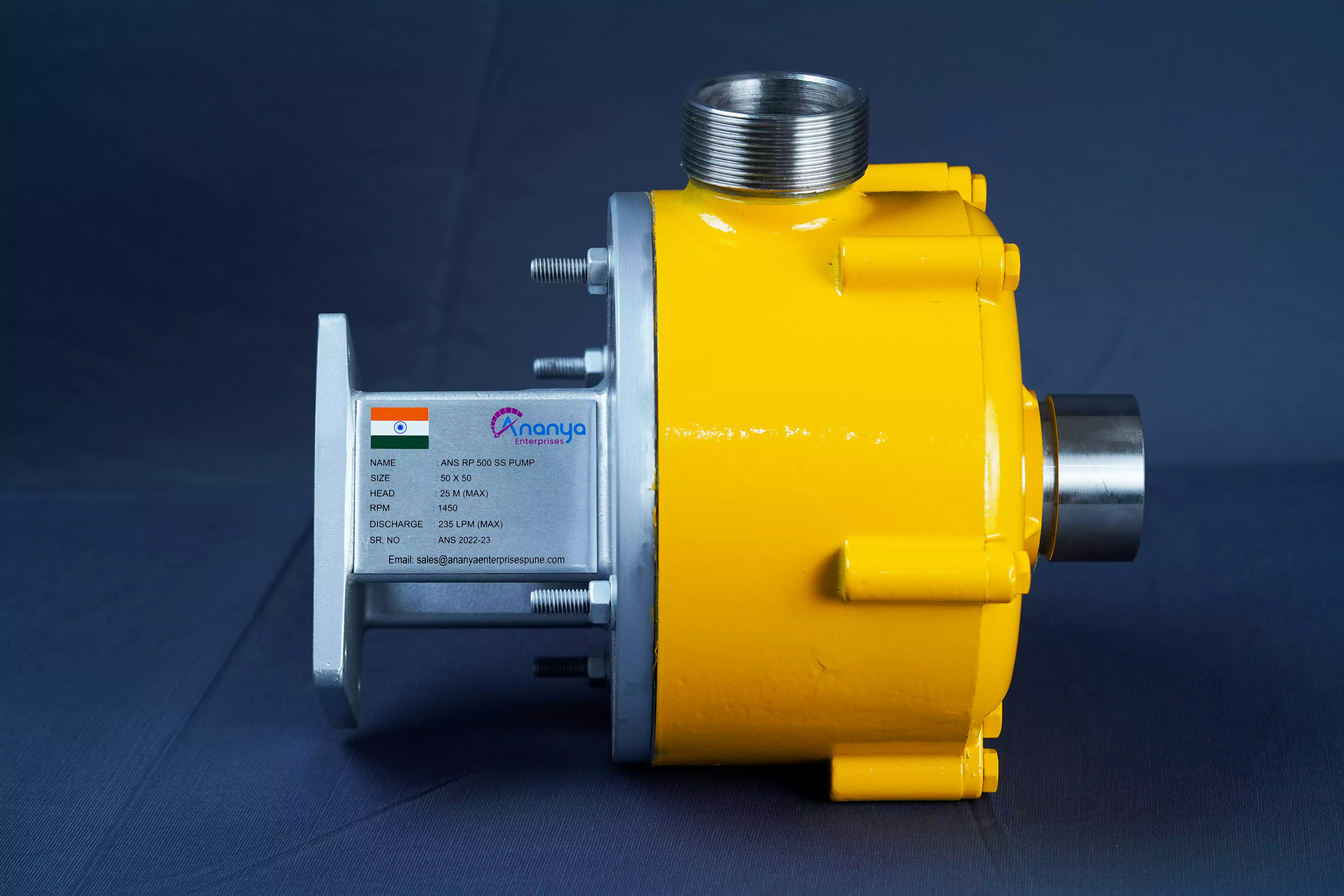

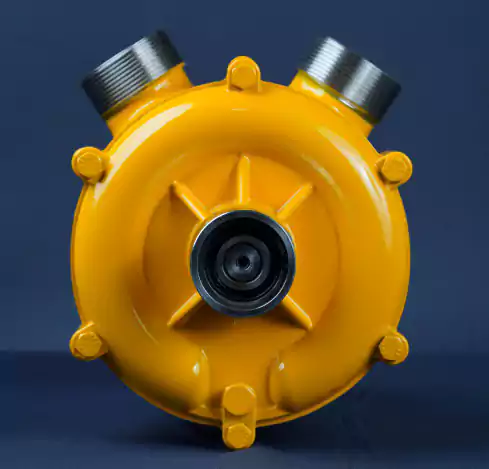

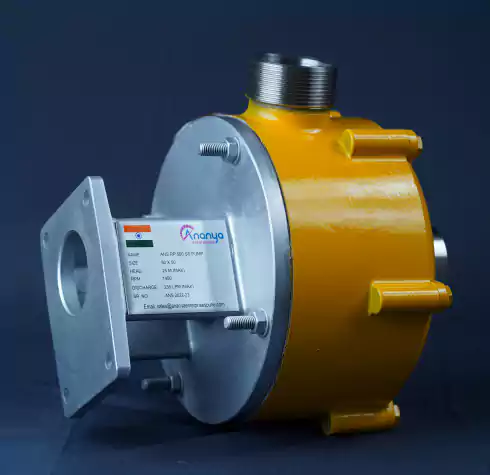

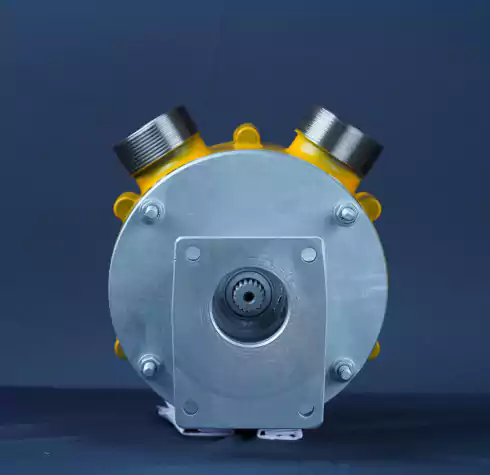

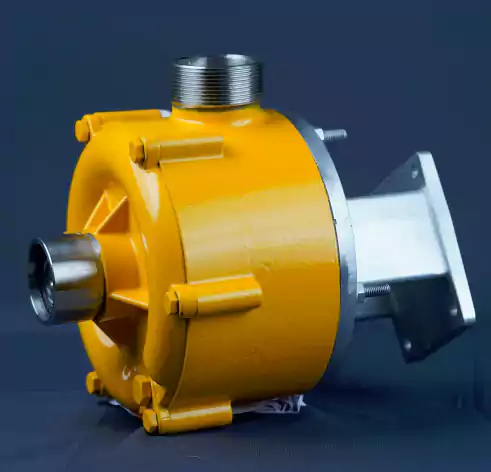

We are Manufacturer, Supplier Of ANS RP-500 Pumps. Our Setup Situated in Pune, Maharashtra, India.
General Description
An impeller transfers the rotational energy to pump head and the front cover creates a suction pressure which make the flow of the liquid from the inlet chamber to the discharge part and then to the outlet chamber.
Silent Features
- Self priming
- Reversible
- Dry operation
- Constant flow without pulsation
Application
- Food processing (Oil, fruit Juice, wine, syrup, pickle etc.)
- Construction (Reversible application for flexible water needs)
- Chemicals (Acids, solvents, cleaning process)
- Agriculture (Liquid, fertilizer etc.)
- Nautical (Sea water, potable water, oil etc.)
Technical Details
| END CONNECTION | 2” BSP MALE |
| WORKING PRESSURE | 2.5 BAR |
| FLOW RATE | 230 LPM |
| DIMENSION (L X W X H) | 260 X 185 X 225 MM. APX |
| TEMPERATURE | AMBIENT |
Material Details
| HOUSING | CF – 8 (SS 304) |
| IMPELLER | CF – 8 (SS 304) |
| SHAFT | SS 410 |
| COVER | CF – 8 (SS 304) |
| MOUNTING FLANGE | ALUMINIUM |
| RATED SPEED | 1400 RPM |
| WEIGHT | 12 kg APX |
