General Description
We are Manufacturer, Supplier Of Flowscale - 12 VDC. Our Setup Situated in Pune, Maharashtra, India.

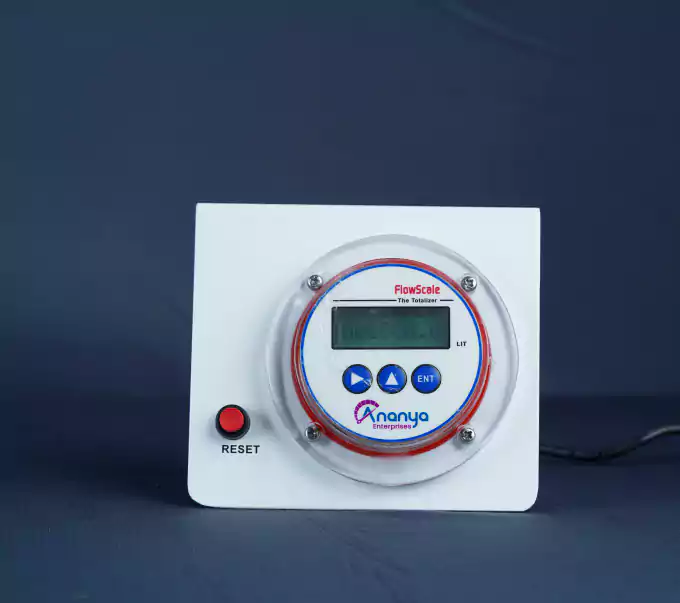

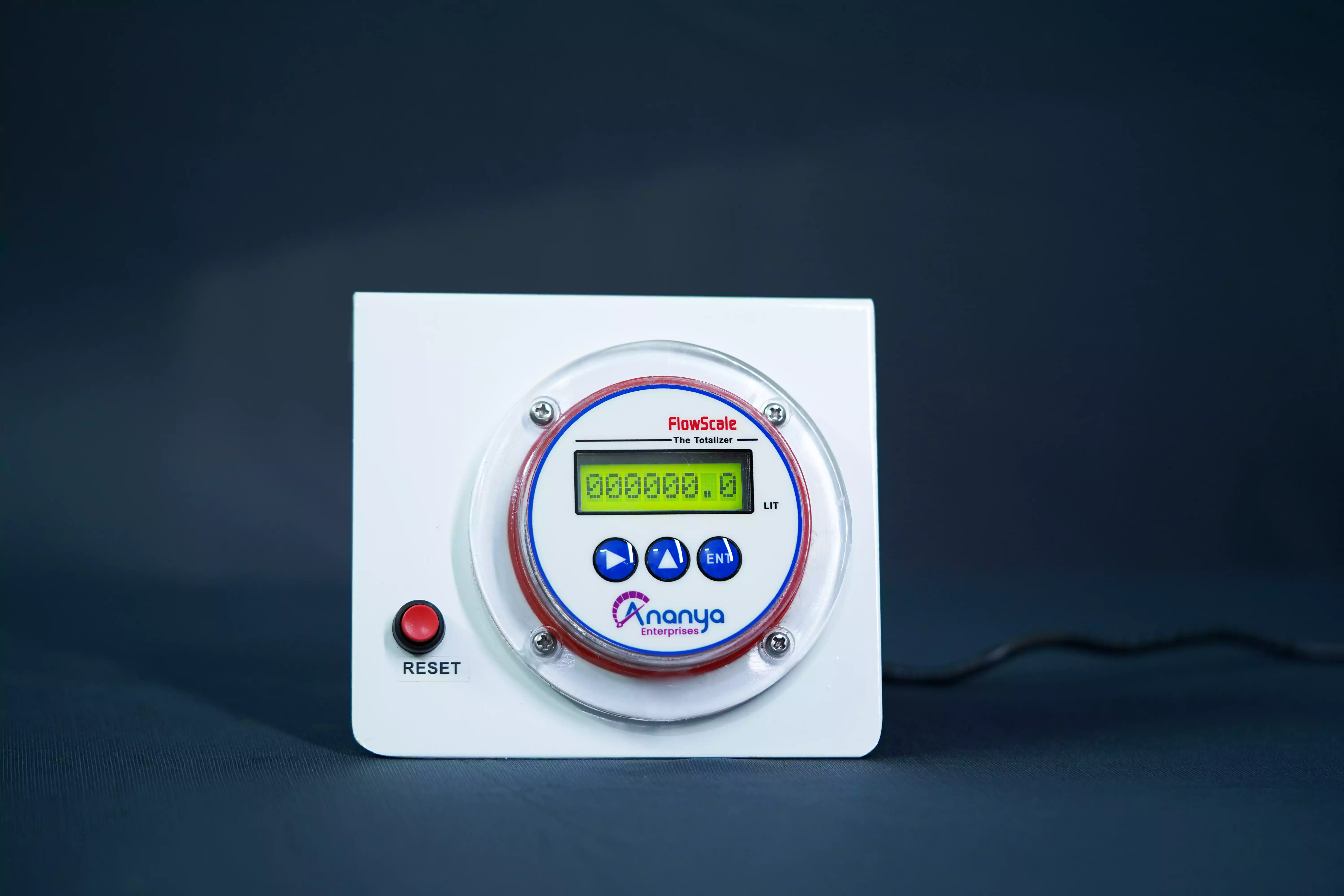

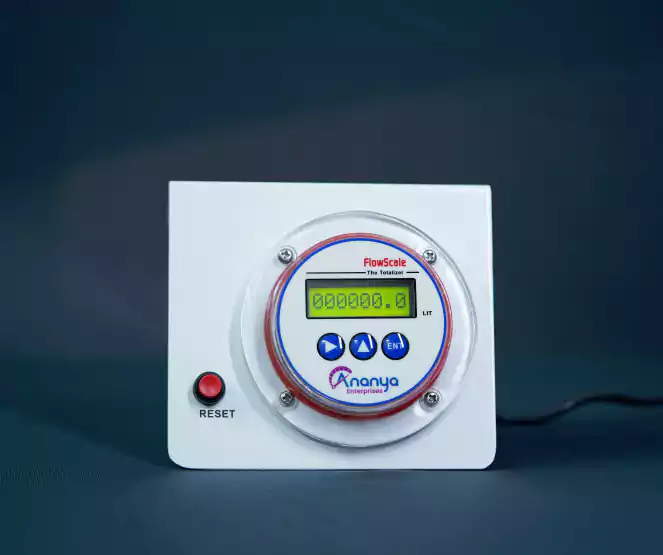

Flowscale - 12 VDC flow rate indicator are controller based unit with high resolution LCD display. Flowscale - 12 VDC is a digital type flow rate indicator for measuring specific type of liquid. Function of totalizer & total reading in LITERS. Flow meter can be mounted on panel. By using front keys we can view programme in display with different parameters. This indicator mostly suitable in construction industries. The pulse generated is transmitted and converted into a volumetric measurement.Silent Features
- Flow indicator all function are password protected
- Front keys for calibration
- Easy to install & maintain
- Economical & efficient
- High performance & durability
- Easy to handle keys for view / changes setting
Application
- Concrete batching plant/ construction
Calibration
Scale factor : The K factor is a constant that converts the number of pulses or signals generated by a flow meter in to a meaning full flow rate.
New scale factor = Measured Qty X Existing scale factor / Display Qty
Electrical Details
| Power supply | 12 VDC |
| Display | 8 x 1 LCD |
| Input | From NS-50 / 100 sensor (Ananya make) |
Flow Indicator Function
| Mounting | Panel |
| Function | Totalizer |
| Total reading | Liters |
| Meter size | 110 x 106 x 106 mm |
| Meter Cutout size | 87 x 87 mm |
Material Details
| Box | Polycarbonate white |
| Cover | Polycarbonate transparent |
| Display | Acrylic |
Note:
- In Vertical piping only Upstream flow is recommended
- Flow meter + sensor + fitting should be installed before valve.
- Use a filter or Y type strainer is must for best result.
- Assure proper connection of 12 VDC, wrong connection may damage the indicator.
- Avoid noise interference due to extending the cable use proper insulation.
- Do not pass sensor cable parallel to power cable, if it is pass then sensor cable through noise protected tray.
- flow range should match as per given our line size chart.
